Intel D2500CC-E Canoe Creek Mini ITX Motherboard


Low-profile Mini-ITX motherboards already exist using lower power consumption processors soldered directly to the board.


The D2500CC or Canoe Creek is one of the new Cedar Trail Atom motherboards from Intel. It features an embedded 1.86Ghz dual core Atom D2500 CPU, 7x USB 2.0 ports, 4x RS-232 ports, Dual 10/100/1000 Intel NIC's, Mini PCIe card slot (full or 1/2 height), VGA, DVI-I, and LVDS display options, independent dual monitor support, supports up to 4Gb of DDR3 RAM, and is totally fanless. The D2500CC will have a 3 year life cycle and has a 3 year warranty making it ideal for project applications.
Please note: XP graphic drivers are not provided for this board.

Exceptional Performance per Watt – the Intel Atom ATOM 1.86 GHz dual core Intel Atom D2500 fanless processor. Low-power Mini-ITX mainboard ideal for cost-conscious embedded applications that do not require an extended production life cycle.


The D2500CCE or Canoe Creek is one of the new Cedar Trail Atom motherboards from Intel. It features an embedded 1.86Ghz dual core Atom D2500 CPU, 7x USB 2.0 ports, 4x RS-232 ports, Mini PCIe card slot (full or 1/2 height), VGA, DVI-I, and LVDS display options, independent dual monitor support, supports up to 4Gb of DDR3 RAM, and is totally fanless. The D2500CC will have a 3 year life cycle and has a 3 year warranty making it ideal for project applications.

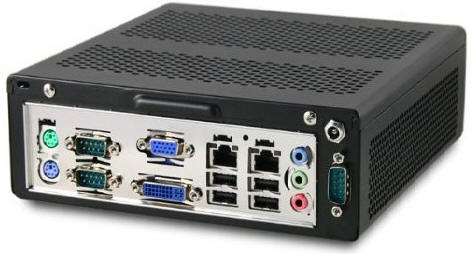

Intel D2500CC Mini-ITx Desktop Dual LAN motherboards Network Barebones System for Firewall router load balancer more network application hardware

Intel D2500CC Mini-ITx Desktop is for Gaming pc, Intel D2500CC Mini-ITx Desktop is for kisok Intel D2500CC Mini-ITx Desktop is for  IPC manufacturer, Intel D2500CC Mini-ITx Desktop is for industrial computer, Intel D2500CC Mini-ITx Desktop is for low power embedded SBC,

CPU card slot, embedded ATX, Mini ITX motherboard, LPX SBC, fanless embedded board, system board, SBC, motherboard, PICMG full size half size single board computer, backplane, PC104, PC/104,STX SoM, embedded baseboard, Mini PCI module, applied computing platform, Water Proof Panel PC, IP65, NEMA 4, NEMA 4X Panel PC, Sunlight Readable, panel computer , HMI, industrial panel, open frame, industrial workstation, industrial LCD monitor, digital signage, thin client, embedded kiosk LCD,

Intel D2500CC Mini-ITx Desktop is for medical computer, medical mobile computer, POI, POS, KIOSK, self-information, touchscreen,

LCD lighting, rackmount wallmount industrial chassis, server barebone, custom enclosure, high-availability industrial, box computer, extended temperature embedded system, rugged industrial computer, industrial din rail mount computer, PCI slot computer, embedded computer chassis, fanless, wide range temperature, in-vehicle PC, network security appliance, network management hardware platform, UTM network security hardware platform, converter, ethernet switch, device server, industrial automation, DA&C

Intel D2500CC Mini-ITx Desktop is for data acquisition control, industrial communication, industrial controller, I/O, embedded OS, Intel ICA, Microsoft Windows embedded partner, VIA, AMD, ODM/OEM



If you are business considering using this technology in a current or new product, please contact our OEM team, who will be pleased to discuss your requirements sales@ravirajtech.com


Specification

Processor 1.86 GHz Intel Atom D2500 (dual core)
Chipset Intel NM10
System Memory 2 DDR3 800/1066 SO-DIMM
Up to 4 GB of memory
Graphics Intel Integrated GMA 3600
Expansion Slots PCI
PCI Express Mini Card
Onboard IDE None
Onboard Serial ATA 2 SATA (3 Gb/sec.) connectors
Onboard USB 7 USB 2.0
Onboard LAN Intel 82574L 10/100/1000
Onboard Audio Intel HD Audio (6+2 channels)
Back Panel I/O 4 USB 2.0 ports
1 VGA port
2 LAN ports
1 DVI-I port
2 RS-232 COM ports
1 PS2 keyboard port
1 PS2 mouse port
3 Audio jacks: line-out, line-in, mic-in
Onboard I/O Connectors 3 USB 2.0 via 2 pin headers
2 SATA connectors
1 Front panel audio pin header
1 Front panel pin header
1 Fan pin header
1 LPT pin header
1 LVDS connector (24-bit, dual channel)
2 RS-232 COM pin headers
24-pin ATX connector
BIOS Intel BIOS 8 Mb flash memory
System Monitoring & Management Power Management, Wake on USB, Wake on keyboard, Wake on mouse, Wake on LAN, Wake on serial port, Fan speed control, Voltage range monitoring

Operating Temperature 0ºC ~ 50ºC
Form Factor Mini-ITX (17 x 17 cm)
Includes Driver CD
Backplate
2 SATA cables
Quick reference guide
Recommended Applications Entry-level computing, Nettop, Web kiosk
Warranty 3 years; item can be returned for warranty to manufacturer only



:: Application

  • Network devices like Firewall, encryption hardware, Network monitor, Device manager etc.

  • NAS Server

  • Media Center

  • Build Home Srever

  • Compact desktop or mobile computer

  • Embedded Single Board Computer systems

  • Thin clients

  • Embedded Windows NT/XP clients

  • Industrial control systems

  • Fanless systems















Hardware only

 Part number

MOQ

 Pricing

Intel ATOM Board

Intel Desktop Board D2500CC

100

USD $129.00





:: Order Information                    India - International

 Order by E-mail

for orders Send e-mail: sales@ravirajtech.com
with subject: Intel Industrial Single Board order

 Order by Fax

Orders By FAX

You may place an order by fax 24 hours a day, 7 days a week. Simply print the form below and fax it to us at:+91-020-24475992

Download Fax Order Form





Intel Mini-ITX form factor motherboards are an economical alternative to traditional embedded boards. Measuring 170 mm x 170 mm (6.75 inches x 6.75 inches), the Mini-ITX motherboards are small native x86 platform and is fully compatible with Microsoft and Linux Operating Systems.

The mini-ITX motherboards are based on powerful x86 processors and are fully equipped with PCI, VGA / TV / HDMI / DVI, audio, USB, serial and Ethernet. The mini-ITX boards enables the creation of a new generation of small computers (mini-ITX PCs, car PC, appliances) aimed at industries, embedded mini-ITX market, data communications, medical equipment and networking applications. Featuring latest mobile CPU, such as the Intel atom the Mini-ITX motherboards are designed for long-term use in small, quiet PCs ranging from silent mini-itx desktops to home digital media and mini-ITX carpc projects.


Intel Desktop Board D2500CC Motherboard

Right click and select 'Save Target As...'





sales@ravirajtech.com

Buy Now

Products Selection Guide

Order information

Payment information

Shipment information

Warranty Policy
