Intel DN2800MTE Mini-ITX Motherboard

Thin compact Intel Mini-ITX- motherboards

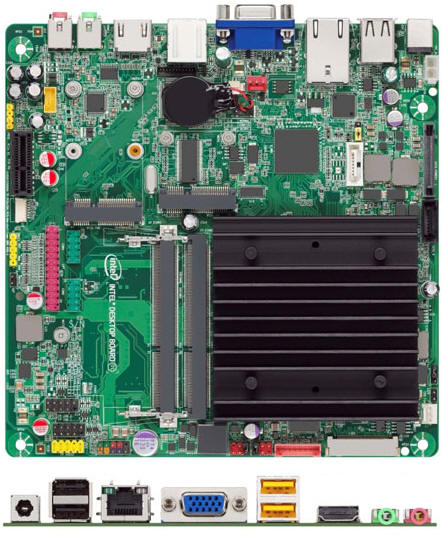

Intel DN2800MTE Marshalltown Fanless Motherboard - Extended Life

Exceptional Performance per Watt the Intel Atom powered mini-itx board D945GSEJT (ENHANCED)

The Intel Desktop Board DN2800MT is a mini-ITX form factor board. Backward compatible
with ATX and microATX, this form factor allows you to build energy efficient and small form factor solutions. This board offers simple, affordable, and Internet-centric computer designs in a compact 170mm x 170mm size; perfect for an ultra-small form factor system with one-litre type chassis or all-in-one chassis.

The DN2800MT ("Marshalltown") is Intel's follow-up to the popular D945GSEJT ("Johnstown") board that launched the Thin-ITX platform. Improvements include dual core CPU with a higher clock frequency and enhanced graphics capabilities, all while lowering the system TDP from 11.8 watts to just 8 watts. Updated I/O features include support for PCI Express (x1) and mSATA, and a second, half-height, PCI Express Mini Card, HDMI, and high-current USB 2.0 ports for fast charging of other devices. Targeted specifically at the embedded, low-power computing market, the Marshalltown is an ultra thin (< 20 mm thick), fanless main board. Offering onboard DC power, it has the potential to have an extremely small footprint and is excellent for use in custom enclosures or other embedded systems (sales@ravirajtech.com )


Specification



Name
  • D2800MTE
  • Processor
  • Intel Atom Processor D2800 (Dual Core)
  • 1.86GHz
  • Chipset
  • Intel NM10 Express Chipset
  • L2 Cache
  • 512 KB x 2 L2 Cashe
  • System Memory
  • Single channel DDR3 1066/800 MHz

  • 2x DIMMs (max 4GB)
  • Graphics
  • Integrated graphic VGA port & HDMI

  • Power
  • 8-19V DC Jack
  • Connectors (rear)
  • 1x VGA
  • 1x LAN 10/100/1000MBit (Realtek)
  • 1x HDMI
  • 2x AUDIO
  • 4x USB2.0
  • Audio
  • Realtek High Definition Audio (ALC) Incl multi-stream support
  • Connectors (internal)
  • 1x PCI Express
  • 1x Mini PCIe
  • AUDIO (Front panel)
  • AUDIO (SPDIF)
  • 4x USB
  • 2x SATA (3GBs)
  • 2x COM (Serial)
  • 1x LVDS 24 bit
  • Included
  • Drivers CD
  • I/O ATX rear plate
  • 2x SATA cable
  • Form Factor
  • mini-ITX (170mm X 170mm)
  • Passive thermal solution
  • :: Application

    • digital signage applications

    • Nettops

    • NAS Server

    • Media Center

    • Build Home Srever

    • Compact desktop or mobile computer

    • Embedded Single Board Computer systems

    • Thin clients

    • Network devices like Firewall, encryption hardware, Network monitor, Device manager etc.

    • Embedded Windows NT/XP clients

    • Industrial control systems

    • Fanless systems



    Hardware only

     Part number

    MOQ

     Pricing

     Pricing

    ATOM Intel D2800MTE

    Intel-D2800MTE

    1000

    INR 8719

    USD $127.00

    :: Order Information                    India - International

     Order by E-mail

    for orders Send e-mail: sales@ravirajtech.com
    with subject: Intel-ATOM D2800MTE Mini-ITX order

     Order by Fax

    Orders By FAX

    You may place an order by fax 24 hours a day, 7 days a week. Simply print the form below and fax it to us at:+91-020-24475992

    Download Fax Order Form
