MDM

Micro Disk Module SSD solid state drives

Boot disk, flash disk, Hard disk, Module disk, Module solution, solid state hard drive, Cheapest, flash disk on module, Disk on key memory module, disk arrays, cheapest, lowest, solid state flat storage disk, flat disk, smart disk, scsitool boot disk, disk wcatwc earthworm module, disk check module, solid state disk, flash disk module,MDM Disk

 on Module India, PQI Flash DiskonModule India, Flash Disk India, M-systems India, Flash memory IDE standard ATA, replace HDD with Flash Disk, Fast Flash Disk FFD India, DiskonChip India Disk on Chip M-sys, M systems India, USB, multimedia, industrial storage, Pune,

MDM - Disk on Module is a Flash (Fast electronic memory) Disk with 40/44 pins IDE/Standard ATA Interface used in computer Hard Disks Drive (HDD). Hence MDM can replace regular HDD or other storage device in embedded/computerized systems, which require highly reliable fast storage disk but do not require many Giga Bytes of storage.

MDM are highly reliable as they do not have any moving parts like regular hard disks and are small in size and light in weight. Hence systems using MDM will rarely crash and offer faster speeds.

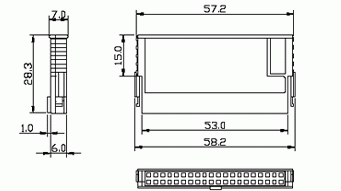

40 Pins SIZE

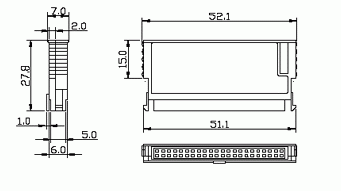

 44 Pins SIZE

Hardware

 Part number

 Pricing

Micro Disk Module 32 MB

MDM 32 MB



Micro Disk Module 64 MB

MDM 64 MB



Micro Disk Module 128 MB

MDM 128 MB



Micro Disk Module 256 MB

MDM 256 MB



Micro Disk Module 512 MB

MDM 512 MB



Micro Disk Module 1 GB

MDM 1 GB



Micro Disk Module 2 GB

MDM 2 GB



Micro Disk Module 4 GB

MDM 4GB



Micro Disk Module 8 GB

MDM 8 GB



Micro Disk Module 16 GB

MDM 16 GB



Micro Disk Module 32 GB

MDM 32 GB



Micro Disk Module 64  GB

MDM 64 GB



Micro Disk Module 128 GB

MDM 128 GB



Micro Disk Module 250 GB

MDM 250 GB



Micro Disk Module 500 GB

MDM 500 GB



:: Features
  • Compatible ATA/True IDE standard interface.

  • Very low power consumption.

  • Rugged environment is working well.

  • Fully Compatible with IDE Interface (40pin / 44pin)

  • Very high performance.

  • Low weight

  • Automatic error correction and retry capabilities.

  • Capacity:16MB ~ 1.5 GB

  • +5 Volts or +3.3 Volts operation

  • Extremely Low Seek Time

  • No Latency Delay

  • Higher Shock Tolerance than HDD

  • Support VCC power supply at 20th pin for 40pin Model.

:: Applications
  • Embedded Systems

  • PC/104

  • Single Board computers

  • Thin clients

  • Computers

  • POS System

  • Security System

  • Vending Machine

  • GPS

  • MP3 players

  • Defense

  • Industrial computers

:: Benefits
  • MDM is cost-effective. Prices on our MDM’s competes and many times is lower that that of hard disks.

  • An extremely reliable embedded flash memory data storage device; It has the characteristics of providing complete ATA/IDE hard disk drive functionality, protocol, and compatibility in a single device that can be used as a replacement for conventional IDE hard disk drives.

  • Requires no additional or proprietary software, such as Flash File System or Memory Technology Driver software.

  • No additional BIOS and OS modification are necessary due to the fact that ATA driver is a standard part of all major operating systems

  • MDM is based on “Solid state mass storage technology”. It's widely used in such products as portable and desktop computers, set-top boxes, PCS phones, POS (point of sale), Gaming, Vending Machines, GPS (global positioning systems), industrial panels, test equipment, measuring instruments and embedded systems.
