Fingerprint Time Attendance System

The meeting of biometrics and IP makes a perfect fit by leveraging the merits of each technology. Increasing biometrics cost can be compensated in BioStar by removing expensive control panels from the system and reducing wiring burden from a central panel to each reader. IP based connectivity makes template distribution for biometric devices a no more difficult job.


  • Time attendance and access control for offices
  • Integrated payroll and HR management of employees
  • Networked security for IBS buildings, financial and research institutes
  • Data collection for customer reward management

The powerful 400MHz DSP is dedicated to fingerprint matching process for fast and accurate performance, and the 200MHz RISC processor ensures uninterrupted device operation.Powered by sophisticated Dual CPU System, the BioStation delivers fast matching speed, rapid response and exceptionally low error rate.

With its 2.5” QVGA color LCD, BioStation’s intuitive graphic user interface has been designed to offer clear communication with users in access control and time attendance applications. When in operation, it also provides voice and sound instruction with built-in speaker, and on-device navigation keys makes even easier device control for both users and administrators

TCP/IP Connectivity with WiFi

Featuring IP-based system topology and WiFi, BioStation’s IP access control system offers extra flexibility in designing your security system while reducing cost on installation & maintenance. Compare to conventional access control system, IP access control provides lower cost per door with less wiring and utilization of existing network infrastructure. The concept also simplifies installation of systems with multiple sites since it only requires basic internet link to remote locations.

Fingerprint Algorithm

At the core of every Suprema access control device, the world’s most powerful fingerprint algorithm assures unrivaled speed and accuracy. Recognized by FVC¹ and NIST MINEX Test², Suprema Algorithm has been proven to be one of the most sophisticated technology in biometrics industry.
¹ FVC: International competition focused on fingerprint verification software assessment.
² MINEX Test: Minutiae Interoperability Exchange Test by US Government’s NIST.

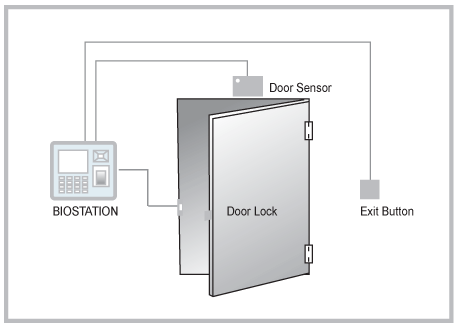

Intelligence at Doors

With powerful internal CPU and comprehensive communication interfaces, BioStation provides both reader and controller functionalities at the door. In addition, it can also control door locks with its built-in door relay or through external relay unit. This concept not only reduces your cost for the entire system by removing costly access control panels, but also improves system stability by eliminating single point of failure that affect whole system.



Versatile Interfaces-extra flexibility

BioStation allows flexible system design and cost advantage with extensive communication interfaces and relays such as TCP/IP, RS485 and Wiegand. In addition, it provides USB2.0 interfaces( device & host), and multiple in/out relays to offer extra flexibility. For further expansion, optional external relay unit is also available.

Biometric Time Attendance

BioStation offers comprehensive, fully customizable time attendance features. With its extremely easy-to-use interface, it offers uncompromising biometric time attendance solution to your organization

Specification

 CPU  Dual CPU (32bit RISC + 400MHz DSP)
 Memory  1GB Flash + 34 MB RAM
 Display  2.5" QVGA 16M Color LCD
 Fingerprint identification speed  1 to 3,000 identification in 1 sec
 Fingerprint capacity  400,000 templates (1:1), 20,000 templates (1:N)
 Log capacity  1,000,000 events
 Network Interface  Wireless LAN (optional), TCP/IP, RS485
 PC Interface  USB, RS232
 USB Memory Slot  USB Host
 Output Relay  Deadbolt, EM lock, door strike, automatic door
 External I/O  Wiegand I/O, 4 TTL I/O
 Operation modes  Fingerprint, PIN, PIN + Fingerprint
 Door phone  Microphone and speaker for door phone
 Navigation key  Navigation key for the menu movement
 Function key  4 Function Keys to user-defined functions
 Operating Temperature  - 20C~ 50C (-5f ~ 122f)
 Size  135 x 128 x 50mm (W x H x D)
